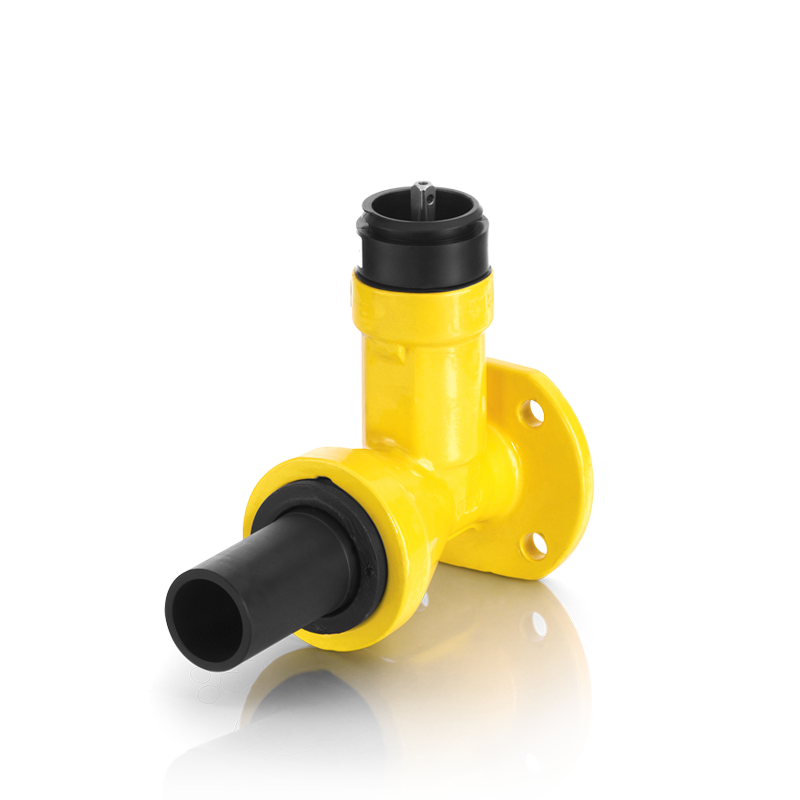

Fully protected slide gate valve Fig. 5039

Part no. 182140

Fully protected slide gate valve
Fig. 5039 | PN 5
with flange / PE 100 spigot end

Gas

Please log in for price information.

Technical specifications
Flanges drilled in accordance with EN 1092-2
PE spigot end PE 100 pipe class S5/SDR11
Operating pressure
5 bar in accordance with SVGW, drilled flange PN 10
Tests
In accordance with DIN EN 13774
In accordance with DIN 3230, Part 5, PG 1
Accessories	Fig.
Telescopic installation set	6895, 8324, 8325, 8348
Universal installation set	6654, 8349
Hand wheel	8316, 8317
Spindle yoke	6662
Spindle extension	9749, 9750
Access covers (see accessorie)
Galvanised flange joint	2007-10, 2007-16
Flange joint V2A	2008-10, 2008-16
PE spigot end S8/SDR17 possible
Drives	A
Mounting instructions
PE spigot end as connection to plastic pipe. Thrust resistant due to electro-welded sleeve or butt-sealing

^w) Flange joint DN 50, screwed socket DN 40
