DUKTUS MMB piece BLS DN 150/100 BLS

Design: Form-fit BLS connection
Standards: EN 545 | GSK | factory standard | EN 14 901
Material: Ductile cast iron | Epoxy resin coating

Characteristics

Outer sleeve diameter 239 mm
Outer tube shaft diameter 170 mm
Inside diameter 152 mm
Height 495 mm
Gross weight 45 kg
Casing ductile cast iron
Ventilation valve Fitting BLS
Max. permissible operating pressure max. PFA 100

DUKTUS MMB piece BLS DN 150/100 BLS

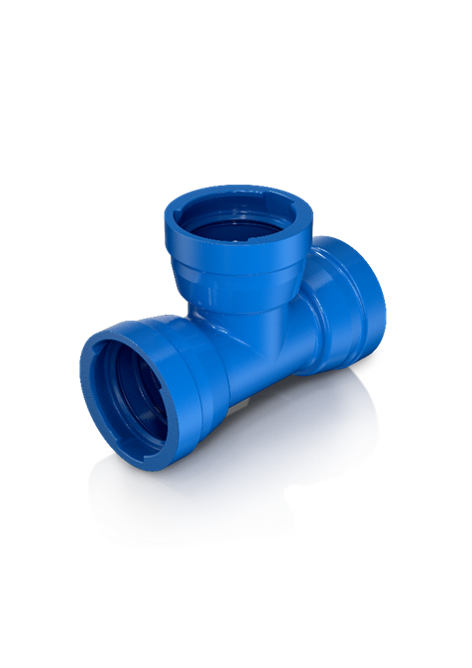

Double socket piece BLS with socket branch 90°

All prices excl.

CHF 621.30
