Part no. 181680

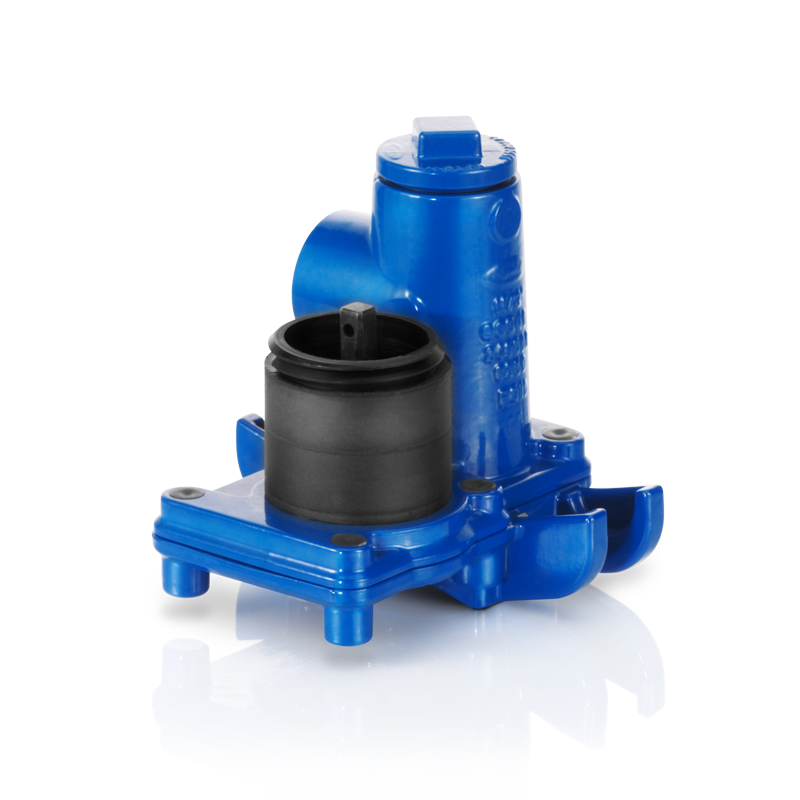

Valve tapping fitting 5000Fig. 5992 | PN 16with gas pipe internal thread
Drinking water
Please log in for price information.
Technical specifications
Actuation through ½ revolution
Accessories
Fig.
Telescopic installation set
6895
Universal installation set
6654
Hand wheel
8316
Spindle yoke
6662
Spindle extension
9749, 9750
Access covers (see accessories)
Bracket
8301
Mounting instructions
For vertical boring under pressure
For cast iron, fibre-reinforced cement mortar, steel, or Eternit pipes
DN
Rp
H1mm
H2mm
H3mm
Sp □DIN-Nr.
kg
PNbar
Art-Nr.
NPK / CANCPN
65-400
1½"
140
145
182
12
8.1
16
181680
862.252
