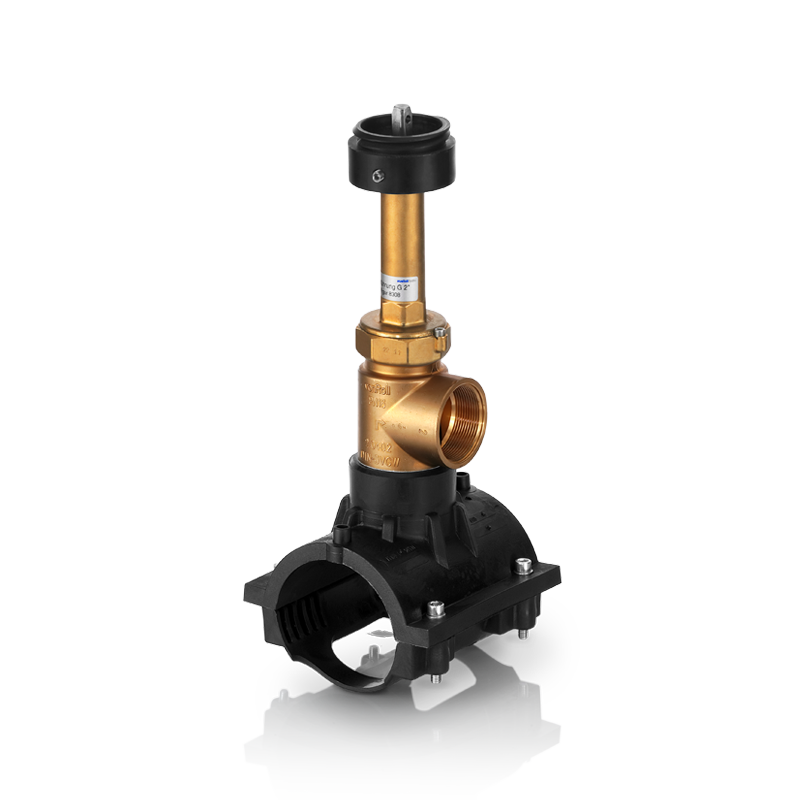

Valve tapping saddle Fig. 8305

Part no. 174420

Valve tapping saddle
Fig. 8305 | PN 16
for fusion-welding for PE pipes with boring bit

Drinking water

Please log in for price information.

Technical specifications
Connecting clamp with PE 100 lower section
Angle valve, brass and lead-free brass^**⁾
Accessories	Fig.
Telescopic installation set	6895, 8326
Universal installation set	6654, 8314
Hand wheel	8316, 8317
Spindle yoke	6662
Spindle extension	9749, 9750
Access covers (see accessorie)
Mounting instructions
Valve can be pivoted by 45° on both sides
Outlet 1½" bore 30 mm
Outlet 2" bore 44 mm
Boring with boring tool, see Mounting and boring instructions	7813

^a) For fusion-welding, the TOP-Load tool 779.350.368 from Georg Fischer must be used (max. wall thickness of HDPE pipe 22.5 mm)
^b) Only for PE pipe (max. wall thickness of HDPE pipe 18.0 mm)

DN	ØD1 mm	ØD2 mm	A mm	H1 mm	H2 mm	SW1 mm	SW2 mm	kg	PN bar	Art-Nr.
50	63	1½"	116	283	97	55	36	3.1	16	174420 174180^**)
65	75	1½"	124	289	103	55	36	3.1	16	174421 174181^**)
65	75	2"	124	289	103	70	36	3.2	16	174521 174193^**)
80	90	1½"	142	297	111	55	36	3.3	16	174422 174182^**)
80	90	2"	142	345	122	70	36	3.3	16	174522 174194^**)
100	110	1½"	165	307	121	55	36	3.5	16	174423 174183^**)
100	110	2"	165	355	132	70	36	3.5	16	174523 174195^**)
100	125	1½"	181	314	128	55	36	3.6	16	174424 174184^**)
100	125	2"	180	362	139	70	36	3.6	16	174524 174196^**)
125	140	1½"	200	322	136	55	36	4.1	16	174425 174185^**)
125	140	2"	200	370	147	70	36	4.1	16	174525 174197^**)
150	160	1½"	218	332	146	55	36	4.5	16	174426 174186^**)
150	160	2"	218	380	157	70	36	4.5	16	174526 174198^**)
150	180	1½"	260	342	156	55	36	4.9	16	174427 174187^**)
150	180	2"	260	390	167	70	36	4.9	16	174527 174199^**)
200	200	1½"	260	352	166	55	36	5.1	16	174428 174188^**)
200	225	1½"	290	365	179	55	36	5.1	16	174429 174189^**)
200^b)	225	2"	320	425	202	70	36	5.4	16	174528 174200^**)
250	250	1½"	320	377	191	55	36	5.5	16	174430 174190^**)
250^a)	280	1½"	390	392	206	55	36	5.7	16	174431 174191^**)
250^b)	400	2"	300	450	223	70	36	6.2	16	174529 174201^**)
300^a)	315-400	1½"	400	410	224	55	36	5.9	16	174432 174192^**)
